Nozzle Selection Chart

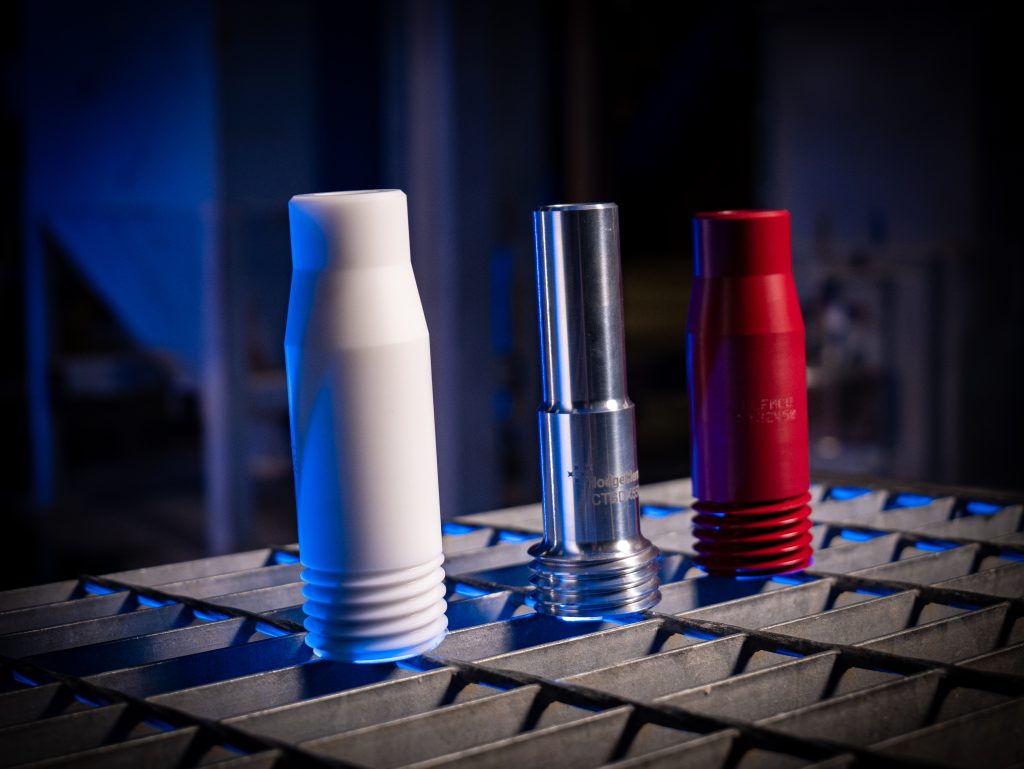

Venturi Nozzles in ascending order of hardness
| Bore Size | 1/8″ (3mm) |
3/16″ (3mm) |
1/4″ (3mm) |
5/16″ (3mm) |
3/8″ (3mm) |
7/16″ (3mm) |
1/2″ (3mm) |
Thread |
|---|---|---|---|---|---|---|---|---|
| Length | (45mm) | (102mm) | (130mm) | (140mm) | (165mm) | (197mm) | (222mm) | Type |
Boron Alloy |
CBSD5 | CBSD6 | CBSD7 | CBSD8 | Flanged | |||
Boron Alloy (Side outlet) |
CBSD51 | Flanged | ||||||
Tungsten Carbide |
CTSD350 | CTSD450 | CTSDX550 | CTSDX650 | CTSDX750 | CTSDX850 | 50mm | |
Silicon Carbide |
SMR3 | SMS4 | SMS5 | SXS6 | SXS7 | SXS8 | 50mm | |
Syclone (SY) |
SY32450 | SY32550 | SY32650 | SY32750 | SY32850 | 50mm | ||
Boron Carbide |
CSD3B | CSD4B | CSD5B | CSDX6B | CSDX8B | 50mm |
Straight Bore Nozzles in ascending order of hardness
| Bore Size | 1/8″ (3mm) |
3/16″ (3mm) |
1/4″ (3mm) |
5/16″ (3mm) |
3/8″ (3mm) |
7/16″ (3mm) |
1/2″ (3mm) |
Thread |
|---|---|---|---|---|---|---|---|---|
| Length | (76mm) | (76mm) | (76mm) | (76mm) | (76mm) | (76mm) | Type | |
Tungsten Carbide |
CTJD350 | CTJD450 | CTJD550 | CTJD650 | CTJD750 | CTJD850 | 50mm | |
Tungsten Carbide (Side Outlet) |
CAM *3350 | CAM *4250 | CAM *5150/5250 | CAM *6150/6250 | 50mm | |||
| Length | (43mm) | (43mm) | (43mm) | (43mm) | (43mm) | |||
Tungsten Carbide |
CT2L | CT3L | CT4L | CT5L | CT6L | CT8L | 25mm | |
Boron Carbide |
CB2L | CB3L | CB4L | CB5L | CB6L | CB8L | 25mm |
