Recommended for aggressive metallic abrasives i.e. chilled iron, steel and aluminium oxide. Wide range of flow rates available. Replaceable liner for long valve life. (SGV3 & SGV3R)

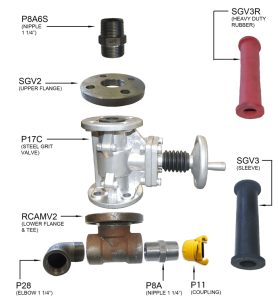

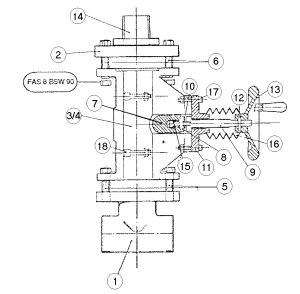

- RCAMV2 LOWER FLANGE AND TEE
- SGV2 UPPER FLANGE
- SGV3 RUBBER SLEEVE
- SGV3R HEAVY DUTY RUBBER SLEEVE
- FAS 8 BSW 11 SET SCREWS FOR LOWER FLANGE AND TEE (4)
- FAS 8 BSW 3 NUTS AND BOLTS FOR UPPER FLANGE(4)
- SGV 7 BRASS NODE
- SGV 8 BRASS BRUSH
- SGV 9 SPINDLE
- SGV 10 NYLON WASHER
- SGV 11 END CAP
- SGV 12 SPRING DOWEL
- SGV 13 HANDWHEEL
- P8A/6S FORGED STEEL NIPPLE
- SGV 15 SHOULDER SCREW
- SGV 16 CORRUGATED GAITER
- FASM834A CAP SCREW x 30 LONG
- FASM833A CAP SCREW x 25 LONG
- FASM881A WASHER
- FASM890A NUT
